The S120 3-Color 3D Channel Letter Printer is a highly advanced and efficient printing solution designed specifically for creating three-color 3D channel letters. This printer allows for the simultaneous printing of the letter's face, base, and shell in three different colors, making it ideal for producing vibrant, multi-color signage. Featuring a large working area of 120x120 cm, the S120 is capable of printing larger and more intricate 3D letter designs, providing greater flexibility for a range of projects.

Equipped with an aluminum heat bed, the machine ensures uniform heating while significantly reducing power consumption, leading to cost-effective operations and higher productivity. The single-head (2-in-1) design supports three-color printing, allowing users to print with a variety of colors simultaneously, improving efficiency and enhancing the overall quality of the printed letters.

Technique Parameter:

Machine Model: S120

Work Table:1200x1200mm

Printing Dimensions:L 1180 x W1180 x H90 mm

Number of Print Heads: Single-head design (2-in-1), capable of Three-color printing.

Supported File Types: CDR, DXF

Nozzle Size: 0.6 mm(optional)

Layer Resolution: 100μm

Printing Speed: 50-100 mm/s

Print Bed Temperature: 70°C to 90°C

Hotend Temperature: 230°C to 250°C

Software: Youtonda Original INC software

Supported System: Windows 64-bit systems (Windows 7+)

Power Supply Voltage: 110V/220V, 50-60Hz

Machine Power : 1200W

Working Environment：Temperature: 20°C to 30°C,Humidity: 20% to 60% RH,Ventilation: Well-ventilated area, free from dust,Vibration: Minimal vibration to maintain printing precision

Machine Size: 1700 x 1600 x 720 mm

Machine Weight: 125 kg

Product Advantage:

• Three-Color Printing: The S120 supports simultaneous printing of three colors, allowing for precise and vibrant 3D channel letter production, including the face, base, and shell.

• Large Working Area: With a print area of 1200 x 1200 mm, the S120 can handle large and complex 3D designs, making it ideal for larger signage projects.

• Material Compatibility: The printer is compatible with multiple materials, including PC+PETG, providing a broad range of options to meet customer requirements.

• Enhanced Filament Detection: The upgraded bearing material rack holds 1-3 kg of filament, and the built-in high-sensitivity filament sensor ensures continuous material supply, preventing print interruptions.

• Precise Leveling: The S120 features an upgraded metal leveling system that offers high durability and accuracy, ensuring consistent, high-quality results with every print.

• Efficient Heating: The aluminum heat bed provides uniform temperature distribution across the entire print area, which helps reduce energy consumption and improve print quality.

Applications:

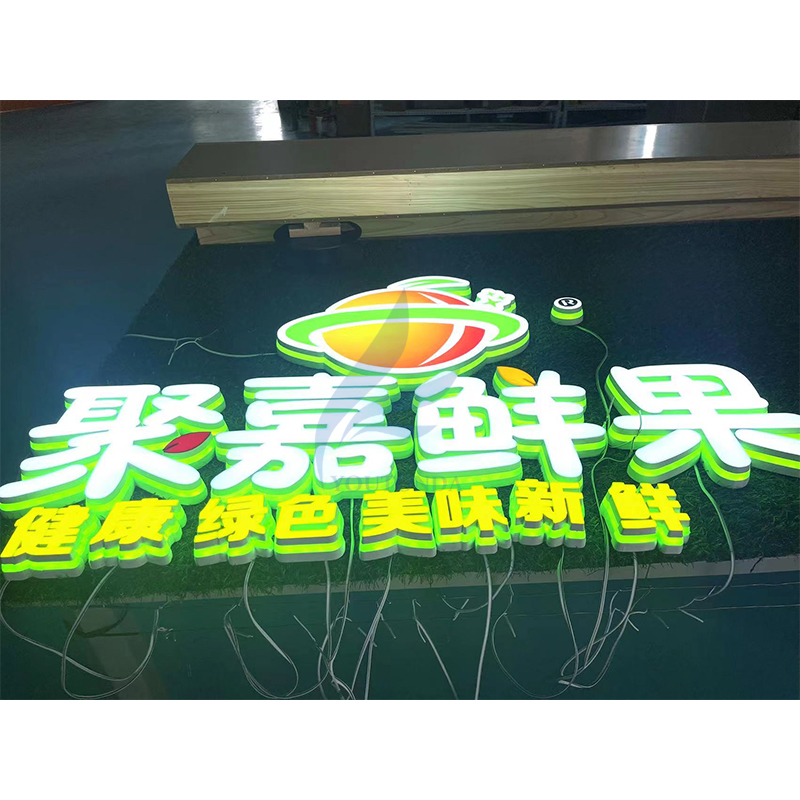

• Advertising Industry: Perfect for producing large-scale advertising signs, channel letters, and custom signage for retail spaces, offices, and public areas.

• Signage Production: Ideal for manufacturing high-quality signs for stores, trade shows, brand displays, and other commercial signage applications.

• Architectural Lettering: The printer is perfect for creating 3D letters and signs for building exteriors, adding unique and bold elements to architectural facades.

• Event Displays: Suitable for printing large customized letter shells and signage for exhibitions, trade shows, corporate events, and celebrations, offering a flexible solution for high-demand displays.

Why Choose the S120 3-Color 3D Channel Letter Printer?

• Cost-effective and Efficient: The combination of three-color printing, large print area, and energy-efficient design makes the S120 a high-value investment for businesses in the signage industry.

• Enhanced Productivity: The machine’s ability to handle large-scale, multi-color prints in a single pass increases production efficiency and reduces turnaround times.

• User-Friendly Operation: Youtonda’s proprietary software and intuitive interface make it easy for users to operate and customize prints, ensuring a smooth workflow from start to finish.
