The YTD-Spro80 3D Channel Letter Printer is a powerful and efficient solution designed to streamline the production of three-color channel letters. This advanced printer integrates both printing and UV curing functions in one machine, enabling you to create fully-cured 3D channel letters with minimal steps and maximum efficiency. The intuitive control panel makes operation simple and user-friendly, while the large working area of 80x80 cm ensures it can handle even the largest, most intricate signage projects.

Technique Parameter:

Machine Model: Spro80

Work Table:800x800mm

Printing Dimensions:L 780 x W780 x H90 mm

Number of Print Heads: Single-head design (2-in-1), capable of Three-color printing.

Supported File Types: CDR, DXF

Nozzle Size: 0.6 mm(optional)

Layer Resolution: 100μm

Printing Speed: 50-100 mm/s

Print Bed Temperature: 70°C to 90°C

Hotend Temperature: 230°C to 250°C

Software: Youtonda Original INC software

Supported System: Windows 64-bit systems (Windows 7+)

Power Supply Voltage: 110V/220V, 50-60Hz

Machine Power : 1000W

Working Environment：Temperature: 20°C to 30°C,Humidity: 20% to 60% RH,Ventilation: Well-ventilated area, free from dust,Vibration: Minimal vibration to maintain printing precision

Machine Size: 1290 x 1200 x 1510 mm

Machine Weight: 165 kg

Product Features:

• 3-Color Printing & Curing Integration: The YTD-Spro80 allows for simultaneous printing of the letter’s face, base, and shell in three vibrant colors. The built-in curing function reduces the need for separate curing steps, increasing production efficiency and ensuring faster turnaround times.

• User-Friendly Control Panel: The integrated, easy-to-use control panel offers seamless operation for both the printing and curing processes, allowing even users with minimal technical experience to quickly adapt and manage their projects.

• Efficient Aluminum Heat Bed: The aluminum heat bed ensures uniform heating across the entire print surface, helping to maintain consistent print quality. It also lowers energy consumption, reducing operational costs and improving cost-effectiveness for your business.

• Intelligent Material Supply System: With the upgraded bearing material rack that holds 1-3 kg of filament and the high-sensitivity filament sensor, the YTD-Spro80 ensures that the printing process continues smoothly without interruptions, even for long printing runs. This intelligent system alerts you when the material is running low, ensuring reliable production.

• High-Precision Metal Leveling System: Featuring a metal leveling system, the printer guarantees maximum accuracy and consistent results. The upgraded system is durable and resistant to wear, making it ideal for high-volume production and ensuring precision with every print.

Applications:

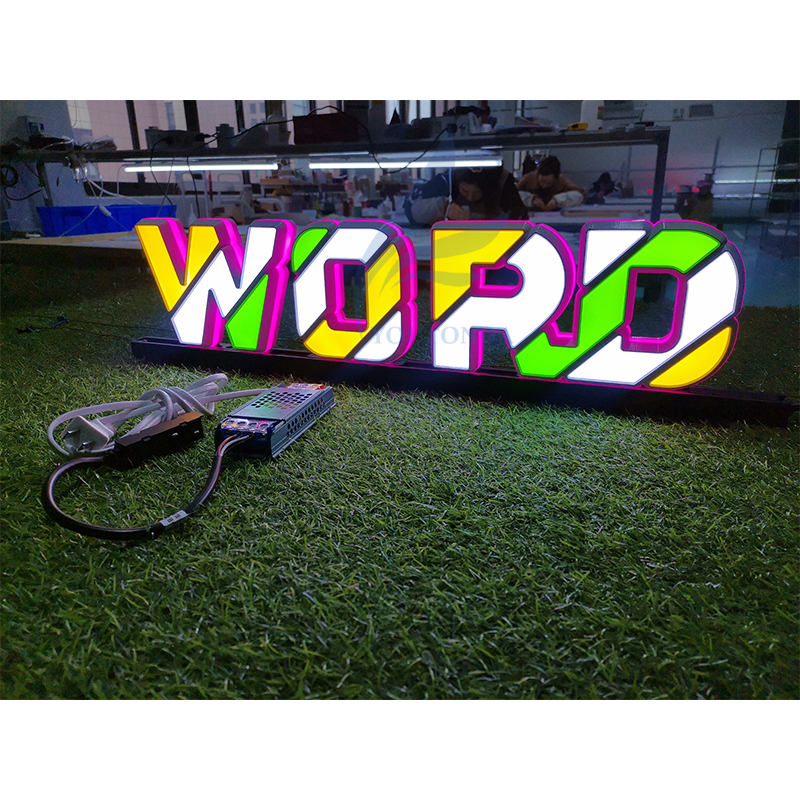

• Advertising Signage Production: Perfect for creating eye-catching, multi-color 3D channel letters and logos for retail stores, commercial buildings, and public spaces.

• Large-Scale 3D Channel Letter Manufacturing: Capable of producing large 3D letters with intricate designs, making it ideal for both indoor and outdoor signage.

• Architectural Signage & Decorative Letters: Use the YTD-Spro80 to create bold architectural elements, from detailed building signs to custom decorative lettering for office spaces, shops, and more.

• Exhibition & Event Signage: The printer is an excellent choice for creating unique signage for exhibitions, trade shows, conferences, and corporate events, offering high-quality results with impressive detail.

Why Choose the YTD-Spro80?

• Increased Efficiency: By combining printing and curing into one process, the YTD-Spro80 reduces the time and labor involved in producing channel letters, allowing you to deliver more projects in less time.

• Cost-Effective Production: The efficient heating platform and intelligent filament detection system help lower overall operational costs while ensuring high-quality, consistent results.

• Versatile and Reliable: Whether you’re producing large signs for advertising or intricate lettering for architectural projects, the YTD-Spro80 is designed to handle a wide variety of materials and projects with ease.

• Space-Efficient: The integrated design combines both printing and curing functions, allowing businesses to save valuable floor space, making it ideal for facilities with limited space.
